Folding LED poster displays are rapidly becoming the standard solution for events, retail stores, exhibitions, corporate presentations, and mobile advertising. The reason is simple: one flight case, one-minute setup, instant digital signage.

But the market is crowded with many products. For example, almost every LED display supplier claims “high brightness,” “ultra-HD,” and “professional quality.” In reality, many products cut corners in areas. However, buyers rarely notice until problems appear after purchase.

As a LED displaymanufacturer, SightLED will help you avoid the most common traps.

Pixel Pitch:

Pixel pitch (P value) directly determines image clarity and ideal viewing distance. The smaller the number, the closer viewers can stand without seeing individual LED dots.

The basic formula is:

Minimum Viewing Distance (m) ≈ P × 1

Example: A P2.0 display looks seamless from about 2 meters and beyond.

You can use the table below to match your audience distance .

Pixel Pitch Selection Table

Pixel Pitch	Optimal Viewing Distance	Best Use Cases	Visual Result at 2m	Relative Cost
P1.8	≥1.8 m	Luxury retail windows, interactive showrooms, close-range exhibitions	Almost invisible pixels, extremely smooth	Higher (+30–50%)
P2.0 / P2.5	2.0–2.5 m	Standard indoor events, conference rooms, moderate retail spaces	Very good clarity, pixels barely noticeable	Best value for indoor use
P3.0 and above	≥3.0 m	Semi-outdoor areas, large halls, trade show booths with distant viewing	Visible pixel grain at close range	Budget-friendly

Bigger Warning: Smaller Pitch Isn’t Always Better
If your audience views the screen from over 3 meters away, P2.5 is already sufficient. If you are Choosing P1.8 LED display in this scenario, it will increase your budget by 30–50%. However, it is almost no visible improvement at normal viewing distance.

 Brightness:

Brightness determines whether your content remains visible in strong ambient light. However, Using a high peak number is useless if the display cannot maintain color accuracy at that level.

Brightness Recommendation by Environment

Environment Type	Recommended Nits	Consequences of Too Low	Notes
Indoor (malls, meeting rooms, dim showrooms)	800–1500 nits	Image looks dim under spotlights	Too bright indoors can cause eye fatigue
Semi-Outdoor (store entrances, bright windows, subway corridors)	Minimum 2000 nits	Content appears washed out	2500+ nits recommended for large windows
Full Outdoor Direct Sunlight	4000+ nits required	Screen unreadable	Most folding LED posters are not designed for permanent outdoor use; if needed, look for high-brightness outdoor-rated models

Common Trap: Fake Brightness Numbers
Many LED display suppliers advertise “maximum brightness,” but at that level colors become distorted, whites look overexposed, and image quality collapses. The real question is: can the screen maintain accurate colors at usable brightness?

Smart Brightness Adjustment Matters
SightLED’s folding LED poster can support automatic ambient light adjustment option. Fixed brightness creates two problems: too bright in dark environments, too dim in bright areas.

Folding Structure and Lifespan:

The folding mechanism is what separates these products from traditional LED displays. It is also the area most likely to fail.

Hinge and Folding Design Comparison

Feature	What to Look For	Red Flags
Hinge material	Precision steel hinges with damping design, smooth motion	Plastic hinges; loose, wobbly movement after a few folds
Fold direction	LEDs facing inward when folded (metal backplane protects the lamps)	LEDs facing outward; one transport bump can kill multiple modules
Cycle life	≥5,000–10,000 guaranteed open/close cycles, backed by independent hinge test reports	Verbal promise only; no test data
Flatness after unfolding	Seam height difference <0.2 mm; surface looks mirror-flat	Wavy, uneven surface; visible steps at the joins

Control System:

Many buyers underestimate how much time is spent operating and updating the display. The best folding LED posters support all major control methods.

Control Methods :

Control Method	Ideal For	Must-Have Features
Mobile App (Wi-Fi / AP direct)	Quick updates, volume/brightness adjustment, live screen mirroring	Works without internet (AP mode); supports video, image, and playlist management
USB plug-and-play	Fixed content loops, non-technical staff operation	Auto-plays on power-up; no need for Wi-Fi configuration
Cloud-based remote management	Multiple screens across locations	Free lifetime platform, group scheduling, live status monitoring, content encryption
HDMI / USB-C direct input	Meeting presentations, live demos	Low-latency extended display; true plug-and-play

The deal-breaker question: “Do I need an external sending box or video processor?” If the answer is yes, you’ve lost half the portability. All receiver cards and media playback hardware should live inside a compact onboard hub. Opening the case and connecting a separate processor defeats the purpose.

The Biggest Trap: External Sending Cards
Some “portable” folding LED posters still require external video processors, bulky sending cards, and separate control boxes. This completely destroys portability. However, SightLED’s LED poster integrates the receiving card, Android system, and playback controller inside the display itself. Power on and use immediately.

After-Sales Service:

No LED display has a zero failure rate. When dead pixels or faulty modules appear, after-sales service determines whether your investment was worthwhile.

Warranty and Service Checklist

Service Element	Minimum Recommendation	Why It Matters
Full-screen warranty	2 years	Covers electronic failures
Hinge/structural warranty	3 years	Folding mechanism is high-wear
Dead pixel policy	≤3 dead pixels per 10,000 pixels acceptable; above threshold free repair	Avoids disputes over what is “normal”
Front maintenance	Defective modules removable from front without full disassembly	Drastically reduces downtime
Shipping responsibility	Clear terms on who pays for return freight during warranty	Hidden costs can be significant

Portability and Flight Case Design

Portability is one of the biggest reasons buyers choose folding LED posters. The entire system must be moveable by one person, ideally without strain.

Flight Case Quality Indicators

Component	Premium Choice	Budget Trap
Frame	Reinforced aluminum	Weak plastic or thin wood
Corners	Metal ball corners or thick rubber bumpers	Unprotected edges
Wheels	Silent universal wheels, smooth telescoping handle	Hard plastic wheels that jam
Base function	Flight case itself becomes the stable base	Requires separate stand assembly
Total weight	Under 25 kg for standard models	Heavy, two-person lift

The best systems use the flight case itself as the base. Avoid products requiring additional assembly, separate support installation, or complicated setup procedures.

Cascading and Multi-Screen Expansion

Modern commercial applications often require multiple synchronized screens. Whether forming a video wall or displaying coordinated messages, the cascading capability matters.

Multi-Screen Feature Comparison

Capability	What to Demand	Why It Matters
Max cascading units	At least 4 panels in daisy-chain; ideally up to 10+	Future-proofs your investment
Large-canvas mode	Multiple panels form one unified video wall, not just cloned content	Transforms posters into a scalable display system
Sync method	Gigabit Ethernet cable sync with sub-millisecond delay; wireless sync as backup	Visible tearing or delay destroys the illusion
Physical gap control	Bezel gap visually negligible when panels are aligned; precise alignment locks	Cheap cabinets create a distracting black cross in the middle of your image
Power design	Single power source can feed multiple panels, or each panel independently powered with tidy cable routing	Avoids a dangerous rat’s nest of cables

You can ask for a live demo of multi-screen synchronization before purchasing. Check whether you can play one video stretched across all panels without tearing.

Mounting Options and Installation Flexibility

Common Mounting Solutions

Mounting Option	Standard or Optional	Key Check
Floor stand	Should be included (tripod, half-moon, or tension-frame style)	Height adjustable for both seated and standing audiences
Wall mounting	VESA standard holes or dedicated wall brackets on the back panel	Load rating and ease of alignment
Ceiling hanging	Integrated hanging points or optional hanging kit	Safety cable attachment points
Mobile trolley	Available as accessory; smooth-rolling with lockable wheels	Matches the screen’s aesthetic; hides cables
Quick attachment	Tool-free snap, twist-lock, or magnetic mount between screen and stand	No screwdrivers on show day

The best systems use quick-lock mechanisms, knobs, and snap structures to avoid screwdrivers during daily setup. Height adjustment is important for seated audiences, standing viewers, and various exhibition layouts.

Power System and Energy Consumption

Power flexibility can make or break an on-location deployment.

Battery Options and Power Specs

Feature	Recommended Specification
Built-in battery (optional)	At least 3-4 hours runtime unplugged; hot-swappable support preferred
Voltage compatibility	110V–240V wide voltage for international use
Power consumption (typical)	150–300W for a standard 55-inch folding poster
Safety certifications	Over-voltage, over-current, short-circuit protection; CE, FCC, RoHS, UL, CCC

If you frequently exhibit in venues with limited power access,you can choose a battery-equipped model with hot-swap capability.

Cooling System and Noise Level

For conference rooms, exhibitions, and luxury retail spaces, fan noise is unacceptable. Passive cooling systems using aluminum alloy rear covers transfer heat efficiently without moving parts.

After 8–12 hours of continuous operation, the rear panel should remain only warm to the touch, with no drop in brightness or image stability.

Core Display Specifications

Key Performance Metrics

Specification	Minimum Professional Standard	Benefit
Refresh rate	≥3840Hz	Flicker-free smartphone and camera recording
Grayscale	14–16 bit	Smooth gradients, no banding in shadows
Color gamut	≥95% DCI-P3 or equivalent wide gamut	Accurate brand colors, realistic images
Viewing angle	160°+ horizontal and vertical	No color shift for off-axis audiences

Low-end 10-bit grayscale systems often show poor shadow detail and unnatural transitions. High refresh rate is non-negotiable if you plan to film or livestream your events.

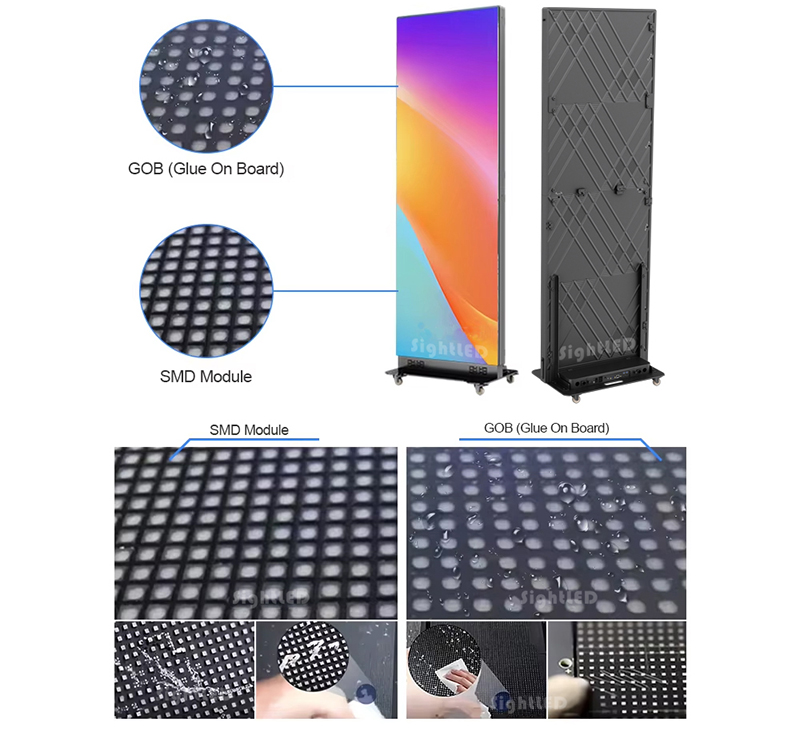

 Protection Technology and Exterior Design

Protection Features

Protection Type	Benefit
GOB LED poster	Impact resistance, moisture protection, anti-static
Scratch-resistant surface	Withstands frequent cleaning and transport
Rounded corners & silicone protection	Reduces accidental damage
Sandblasted aluminum alloy frame	Premium finish, better heat dissipation, no paint chipping

GOB coating is especially valuable for rental and transport-heavy applications. You can use A quality frame. It is not only looks better but also protects the internal electronics far more effectively than painted plastic.

Media Playback Compatibility

Playback Format and Storage Checklist

Capability	What to Look For
Internal storage	32GB minimum, expansion via USB/SD card
Codec support	H.265 decoding, 4K playback, MP4, MOV, JPG, PNG, MP3
Smart features	Scheduled playlists, emergency message insertion, auto screen rotation, power-loss memory
Maximum file size	4K video without stuttering

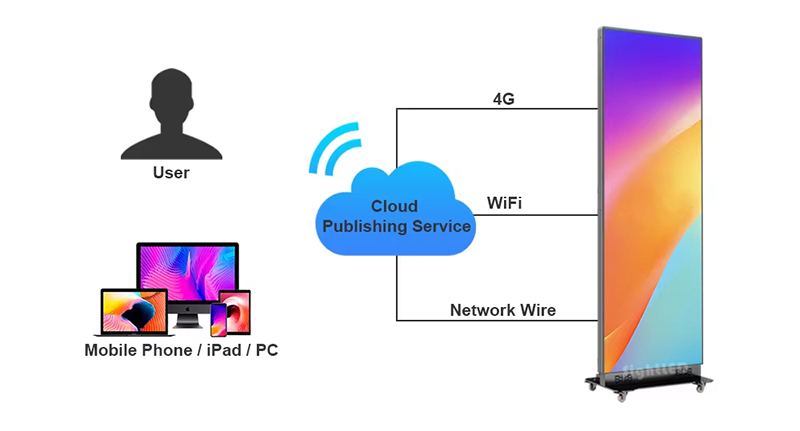

 Remote Management and Security

For businesses managing multiple units across different locations, you can choose enterprise-level control.

Remote Management Features

Feature	Importance
Multi-user permission management	Allows different access levels for staff
Real-time device monitoring	Immediate alerts if a screen goes offline
Screenshot preview	Verify displayed content remotely
OTA firmware upgrades	Keep all devices updated without physical access
Encrypted content storage	Prevent unauthorized content extraction

Accessories and Packaging

Before purchasing, clarify exactly what is included to avoid unexpected add-on costs.

Standard vs Optional Accessories

Item	Should Be Included?
Flight case with wheels	Yes, as the primary enclosure
Floor stand	Yes, matched to the screen
Power cable & adapter	Yes, correct regional plug type
Network cable	Yes, at least one for initial setup
Remote control	Yes, or full functionality via app
Quick-start guide	Yes, printed and a QR code link to a setup video
Spare modules / repair kit	Optional, but know the cost per spare module in advance
International shipping packaging	Custom plywood crate or reinforced box, not a single-layer cardboard carton

Manufacturer Qualification and Sample Testing

Supplier Evaluation Checklist

Qualification	What to Verify
Factory visit	Production line, aging test, QC process
Sample testing	Trial unit, return testing program availability
Project references	Case studies in your industry, installation videos, customer references
Certifications	CE, FCC, RoHS, structural and design patents

Final Decision Checklist

Step	Action
1	Measure your typical audience viewing distance and select pixel pitch accordingly
2	Confirm indoor or semi-outdoor usage and match brightness to environment
3	Inspect hinge material, folding direction, and request endurance test data
4	Test the control system yourself — app, USB, and cloud
5	Read the warranty and dead pixel policy carefully
6	Check total weight and flight case quality if you travel often
7	Validate multi-screen sync if you plan video walls
8	Ensure mounting options fit your venues
9	Demand real performance videos, not just spec sheets

Final Thoughts:

The biggest mistake buyers make is comparing folding LED posters only by price. In reality, long-term value depends on structural durability, portability, display quality, control convenience, and after-sales support. SightLED provides A professional folding LED poster. It can survive real transportation, real deployment, and real commercial operation. Please feel free to contact us if needed.
