LED Screens Moiré Effect: Causes, Prevention and Solutions

The moiré effect on LED screens is a common challenge. This visual distortion occurs when two similar patterns overlap, creating strange, wavy designs. It disrupts the clarity of images and videos, often resulting in distracting patterns, however, they can interfere with the viewer’s experience. In this article, we’ll explore LED displays moiré effect details.

What is the Moiré Effect on LED Displays?

LED Displays Moiré Effect

The moiré effect manifests as irregular stripes that clash with the intended display content. These patterns can confuse viewers, making it hard to focus on the original image. The term “moiré” comes from French, meaning “wave” or “blurred,” reflecting the wavy lines that appear during this phenomenon.

Causes of the Moiré Effect on LED Screens

LED Displays Moiré Effect
  • Low Screen Resolution:  A lower resolution LED display limits the ability to display finer details, leading to the moiré effect, especially with small text or intricate images.
  • Insufficient Refresh Rate: A slow refresh rate LED display can’t keep up with fast-moving images. This can cause flickering or blurriness, contributing to moiré patterns during rapid visual changes, like in gaming.
  • Pixel Misalignment: Misaligned pixels create interference patterns that distort images and videos.
  • Poor Anti-Aliasing Quality:  Low-quality anti-aliasing may fail to smooth out lines, leading to the creation of moiré patterns instead.
  • Incompatible Software or Drivers:  If Software  incompatible, it can lead to incorrect scaling or resolution issues, worsening the moiré effect.
  • Low-Quality Video Cables: Using subpar cables to connect devices can introduce distortions, leading to the moiré effect.
  • Overlapping Elements: When patterns overlap on the screen, they can create interference.
  • Complex Designs:  fine details or repetitions Patterns are more susceptible to the moiré effect.
  • Fine Lines or Small Fonts: Thin lines and small text contain high-frequency details that lower-resolution screens struggle to reproduce accurately, causing moiré patterns.
  • High Contrast Images: Images with sharp transitions between light and dark can generate high-frequency patterns that the screen cannot display correctly, leading to distortion.
  • Reflections from External Light Sources: Reflections from overhead lights or sunlight can interfere with displayed patterns, creating unwanted visual artifacts.
  • Electromagnetic Interference: Nearby electronic devices emitting electromagnetic waves can disrupt the pixel patterns on LED screens.
  • Pixelated Images: Each LED display has a fixed pixel density. When the pixel density of the content doesn’t match the screen, it can result in moiré patterns.
  • Viewing Distance: Your distance from the screen can affect the appearance of pixel patterns, potentially triggering the moiré effect.
  •  Physical Damage to the Screen: Scratches or cracks can cause light diffraction, producing interference patterns that overlap with the original image.
  • Inappropriate Content for the Screen: If content isn’t suitable for the screen’s pixel structure, it can lead to the moiré effect.
  • Incorrect Color Calibration: Miscalibration can enhance the visibility of moiré patterns.
  • Improper Scaling: Incorrect scaling can cause pixels not to align, leading to the moiré effect.

How Moiré Effect Impacts Content Quality on LED Screens

low high refresh rate LED display

The Moiré effect can significantly affect the quality of text, graphics, images, and videos displayed on LED screens. Here’s how:

  • Image Distortion: Moiré patterns may cause images to appear distorted or blurry.
  • Reduced Contrast: The effect can diminish the contrast of displayed content. Lower contrast makes the original image look flat and unappealing.
  • Poor Clarity: Clarity suffers as the Moiré effect can make content look fuzzy.
  • Screen Flicker: Moiré can lead to flickering or pulsating on the screen.
  • Text Distortion: Text may appear broken or difficult to read due to the interaction between the LED pixels and displayed content.
  • Jagged Edges: If Moiré causes jagged edges on text or images, it can make content seem unprofessional.
  • Moiré Patterns: The effect can create uneven patterns that confuse viewers.
  • Banding Effects: Some colors and patterns that look good on phones or computers may not display well on LED screens.
  • Rainbow Effect: Moiré may introduce visible rainbow patterns, further lowering the quality of displayed content.
  • Motion Artifacts: You might notice frame skipping or jitter when displaying content.
  • Pattern Conflicts: When multiple patterns are present, Moiré can cause chaotic visuals.

Impact on Businesses Using LED Screens

Many businesses rely on LED screens for advertising, events, and communications. The effectiveness of digital signage is significant, as 63% of consumers find it more engaging than traditional media. However, companies dealing with Moiré effects face serious challenges:

  • Decreased Visibility: Moiré can cause displayed content to appear broken or hard to read.
  • Damaged Brand Image: Frequent Moiré occurrences can harm a business’s reputation. Customers may perceive the brand as unprofessional.
  • Missed Opportunities: If promotional content is unclear due to Moiré, customers may miss important sales information.
  • Divided Attention: Distracting displays cause viewers to lose interest, making it harder to engage with the content.
  • Difficulty Showcasing Products: Brands want their products to look appealing. Moiré can alter colors or appearances, making accurate representation difficult.
  • Eye Strain: Prolonged exposure to Moiré effects can lead to viewer discomfort.
  • Negative Word-of-Mouth: Unsatisfied customers are likely to share their experiences.
  • Higher Maintenance Costs: Moiré require more frequent upkeep, which will increase operational costs for businesses.
  • Lower ROI: If Moiré impacts the effectiveness of advertising, it leads to poor customer acquisition and lower returns.

Preventing Moiré Effect on LED Screens

Now that you understand the moiré pattern, its causes, and its impact on businesses using LED screens, let’s explore effective prevention methods.

  • Use Higher Pixel Density Screens: Higher pixel LED display can significantly reduce the likelihood of moiré effects.
  • Adjust Refresh Rate: The refresh rate can cause flickering, leading to blurriness or jagged edges.
  • Choose Matte Screens or Anti-Glare Coatings: If LED display is under direct sunlight or strong ambient light ,it can trigger moiré patterns.Therefore, you can use Matte screens or anti-glare coatings to help minimize reflections.
  • Use High-Quality Video Cables and Connectors: Quality cables reduce signal interference.
  • Incorporate Video Signal Processors: When using multiple LED screens, you can use Video signal processors to adjust frequencies and timing to mitigate this.
  • Employ Diffusers to Soften Light: Diffusers can help reduce interference and soften the light emitted by the screen, lessening the chance of moiré patterns.
  • Avoid Small Fonts and High-Contrast Patterns: you can use medium-sized fonts and balanced patterns instead of small one.
  • Utilize High-Quality Graphics Cards with Anti-Aliasing Filters: Jagged edges in text and images can disrupt your display. Quality graphics cards with anti-aliasing filters smooth edges, reducing moiré occurrences.

By using these strategies, you can effectively prevent moiré effects on your LED screens.

Minimizing Moiré Effects on LED Screens

Moiré effects are significant challenges for businesses and individuals using LED screens. They can disrupt important presentations, advertising campaigns, and special events. If you’ve experienced moiré patterns or want to reduce their impact, try these tips:

Adjust Resolution: Because moiré patterns result from interference between pixel patterns on the screen and those in your displayed content, so you and adjust resolution and decrease the chances of uneven patterns. However, lowering resolution may also impact image quality, so find a balance.

Use Diffusers: A diffuser evenly distributes light. You can lessen moiré effects by blending pixel patterns, making them less noticeable.

Select Appropriate Pixel Pitch: you can choose higher pixel pitch reduces the chances of moiré patterns appearing.

Calibrate Correctly: Improper calibration can lead to color discrepancies. Please ensure your screen’s colors and brightness levels are accurate to minimize moiré patterns.

Apply Anti-Aliasing Filters: These filters add extra pixels to smooth out jagged edges.

Utilize Multiple Smaller Panels: Instead of one large LED screen, use several smaller panels.

Adjust Refresh Rate: you can use higher refresh rates LED displays and decrease moiré pattern visibility.

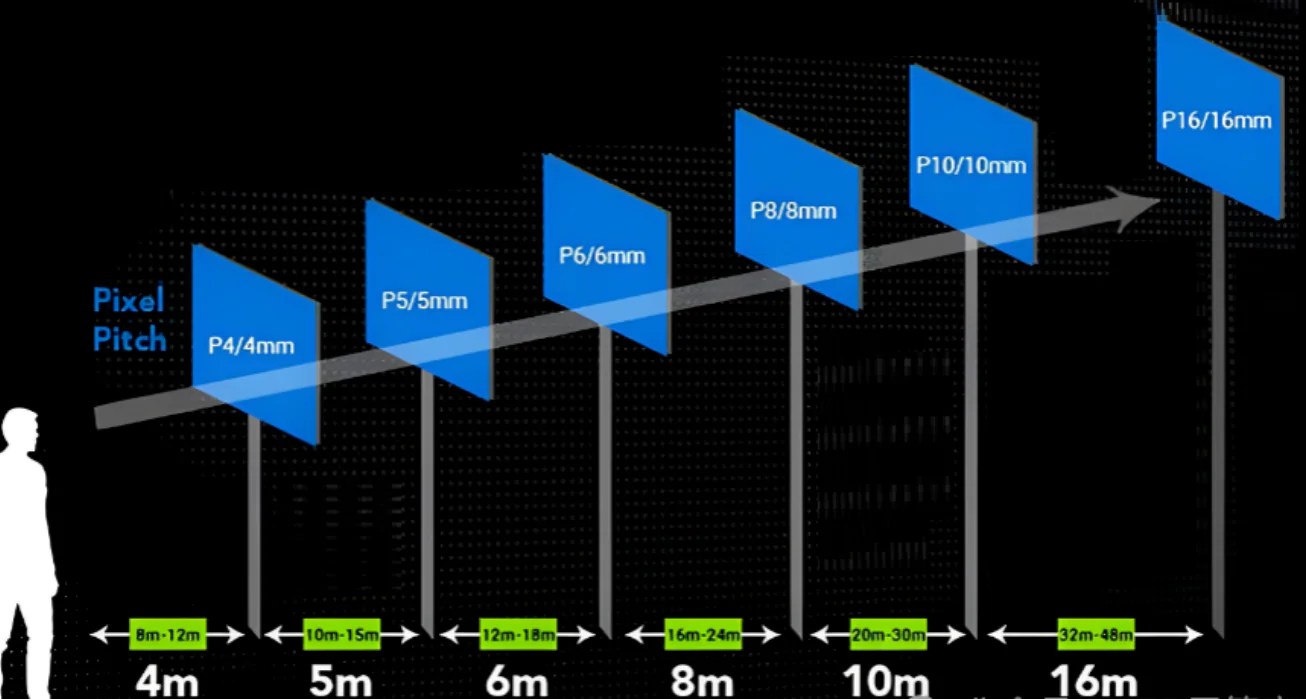

Change Viewing Distance: The distance between the viewer and the screen affects moiré patterns. Please choose a right distance can help reduce their visibility.

Implement Noise Reduction Filters: Noise reduction filters analyze and remove patterns that cause these effects.

Consider Software Solutions: If moiré patterns persist, check your images and videos for these patterns. Use software solutions to eliminate them.

Replace the Screen if Necessary: If all else fails, it may be time to consider a new LED screen.You can Consult professional LED display expert,such as SIGHTLED.

Comparing Moiré Effects Across Different LED Technologies

SMD vs.COB LED

Moiré patterns can affect all types of LED screens, but you should know how they impact various LED display.

  • Direct View LED (DVLED): DVLED screens have higher pixel density, which can increase moiré effects. However, their brightness and contrast help mitigate visible moiré patterns, especially from a distance.
  • Surface-Mount Device LED (SMD LED): SMD screens have lower pixel density compared to DVLEDs. This generally leads to fewer moiré effects. However, small pixel pitch LED display can still cause issues, especially at close viewing distances.
  • Chip-on-Board LED (COB LED): COB screens have a higher pixel density than SMDs, so moiré patterns can be more less apparent.
  • Mini-LED: Mini-LED technology uses smaller chips, resulting in higher pixel density. This can decrease the likelihood of moiré patterns. Yet, at a distance, these patterns are usually less noticeable.
  • OLED: OLED screens use organic compounds that emit light when current passes through. They have lower pixel density than other technologies, which helps reduce moiré effects.

Conclusion:

Moiré patterns can affect all LED display, but it occurs depends on pixel density, viewing distance, and the type of LED technology.If it is within your budget, you can choose a higher resolution and higher refresh rate LED screen. If you have an LED display project and don’t know how to choose, please feel free to contact us. Our experts will be happy to help you.
