Round LED displays,also referred to as circular LED screens, ring-shaped digital signage, or curved LED arrays, are widely used for retail, exhibitions, corporate events, and architectural media. Unlike traditional rectangular LED walls, seamless circular geometry brings unforgettable visual impact.
However, as a procurement manager, or project integrator, How much does a round LED display really cost, and how can I obtain a reliable quote that matches my project scope? The short answer is that price is highly customized, but with the right framework, you can predict costs accurately.
In this complete guide you will learn:
- Actual price ranges per square meter (indoor/outdoor)
- How to estimate your project using diameter and pixel pitch
- What factors drive cost beyond the LED modules themselves
- Real project examples with installation and shipping cost breakdowns
- A step-by-step methodology to request and compare offers
What Exactly Is a Round LED Display and Why Custom Shape Matters

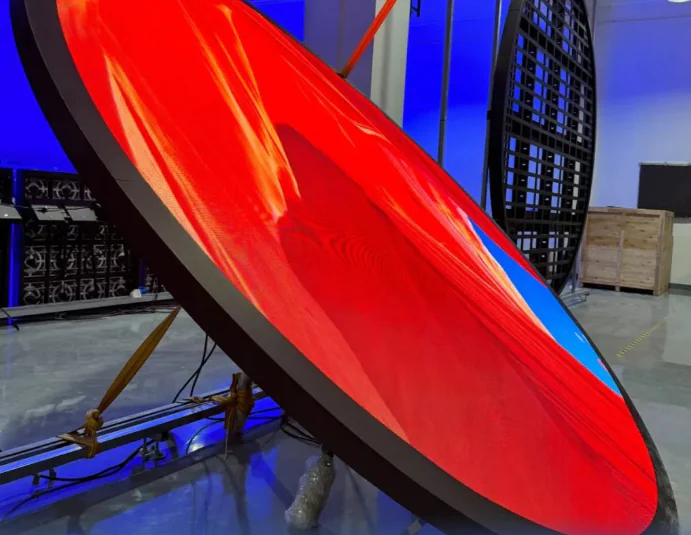

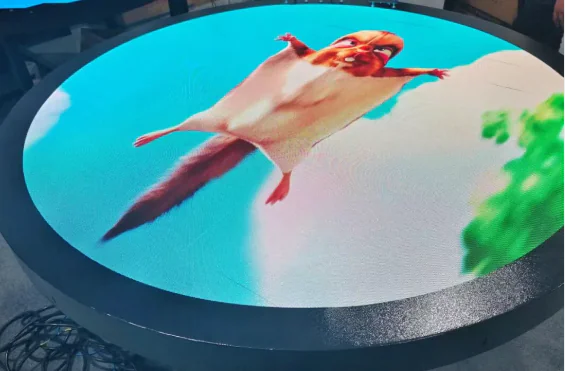

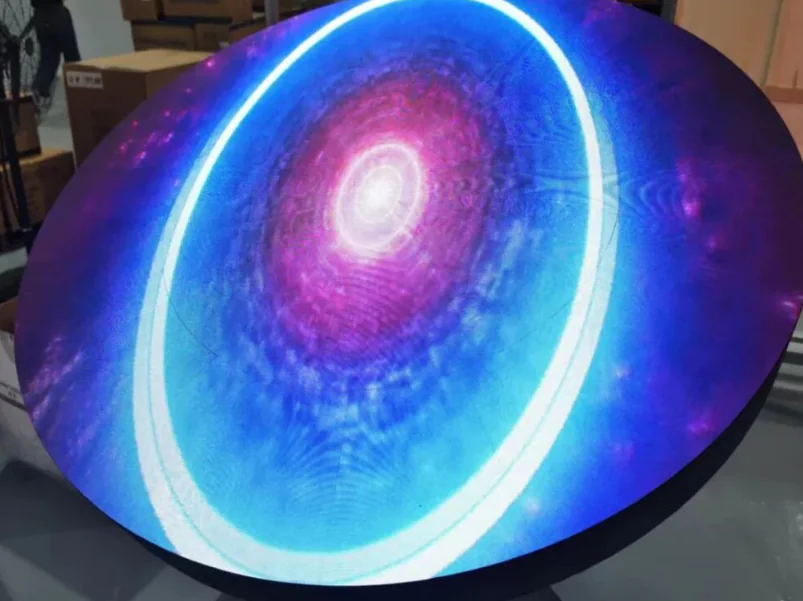

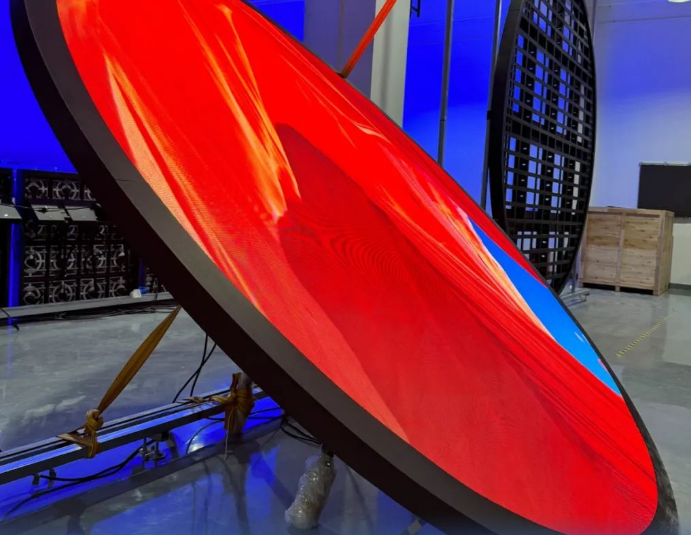

A round LED display is a circle, ring, or semi-circle custom LED screen. To achieve the form factor, LED display manufacturers must use:
- Curved or segmented die cast aluminum cabinets
- Flexible mask and module designs or precision cut standard panels
- Nonlinear video processing
- Integrated mechanical hanging or floor-mount structures
Common applications include:
- High-end retail façades and interior focal points

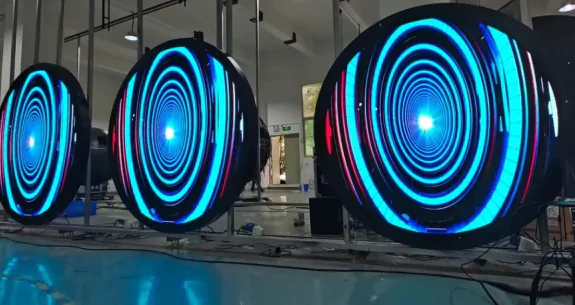

- Ceiling-suspended ring displays in shopping malls and atriums
- 360° stage elements for corporate events and product launches
- Brand activation zones at exhibitions and trade fairs
- Immersive museum, showroom, and experience center installations
Average Round LED Display Price Ranges
You can view these references are based on FOB factory quotes from mid-to-high Chinese LED display manufacturers. It excludes freight, taxes, and installation.
Indoor Round LED Display (Fixed Installation)
- P1.2–P1.8 fine pitch: $1,200–$2,800 / sqm
- P2–P3: $700–$1,400 / sqm
- P3–P4: $450–$850 / sqm
- P5 and above: $350–$600 / sqm
Outdoor Round LED Display (IP65, High Brightness)
P2.5–P4: $900–$1,700 / sqm
P5–P10: $550–$1,100 / sqm
Custom Round Structure Premium
Add 20%–50% on top of the base module cost for:
- Custom cabinet frame CNC machining
- Wind-load structural engineering for large diameters
- Flexible LED boards and non-rectangular PCB design
Typical Turnkey Project Budget Ranges ,Including Control System & Basic Installation Structure
- Small display (φ 1–2m): $1,800 – $6,000
- Medium display (φ 2–4m): $6,000 – $18,000
- Large display (φ 5m and above): $18,000 – $65,000+
Key Factors That Drive Round LED Display Price
Pixel Pitch and Minimum Viewing Distance
Pixel pitch remains the dominant cost driver. For reference:
- Viewing distance < 2.5m: P1.5–P2 is recommended
- Viewing distance 3–6m: P2.5–P3 offers the best price/performance
- Viewing distance > 6m: P4+ can deliver excellent ROI
Display Diameter and Total Area
Use the formula:
Area (sqm)=π×(radius in metres)2
For a 3m diameter circle, area ≈ 7.07 sqm. A 4m diameter circle jumps to 12.57 sqm, increasing total display cost by nearly 80% while only adding 1m to diameter. Be careful with scaling.
Cabinet and Structural Engineering
Round shapes demand specialized cabinets. You can use two common constructions:
Segmented polygonal approach:
Numerous small flat cabinets arranged in near circle shape; lower cost but visible faceting on larger pixels.
Truly curved die cast cabinet:
Perfect circle, higher tooling cost, greater structural rigidity. For suspension, additional steel truss and safety cables are required.
Installation Method
Wall mounted: Lowest structural cost; It may require custom brackets.
Ceiling suspended / hanging ring: Medium to high cost due to suspended framework, weight distribution, and safety certification.
Free standing double sided round: Highest mechanical complexity.
Installation costs normally add 10%–25% of hardware cost.
Control System and Circular Pixel Mapping
A round display needs a video processor capable of irregular canvas mapping. Entry level Novastar cost $200–$600, while advanced 4K processors with rotation and circular scaling can exceed $1,500.
Indoor vs Outdoor and Environmental Resistance
Outdoor round LED displays require:
Full IP65 front/rear protection
High brightness 5,000–8,000 nits for direct sunlight
Anti corrosion materials and efficient cooling
These requirements add 30%–50% to the module cost compared to indoor equivalents.
Brand Components and Certification
LED chip brand Nationstar, Kinglight etc
Driver IC ,ICN2153, MBI5252, etc.
Power supply ,Meanwell or equivalent
Real Round LED Screen Project Budget
Below, we will give three project scenarios.
Case 1: Luxury Jewellery Store Wall Mounted Round LED Display
Project Background
A high end jeweller wants to replace a static backlit logo behind the main counter. The display needed to be visible from 1.5–2.5 metres. It is close. The customers standing at the counter could see flawless image quality. The store had a solid concrete wall, making wall mounting the simplest. It is most cost effective installation method.
Technical Configuration
- Diameter: 1.8 m
- Active area: ≈ 2.54 sqm (π × 0.9²)
- Pixel pitch: P1.8 indoor, front service
- Brightness: 800 nits
- Refresh rate: 3,840 Hz
Cost Breakdown
| Line Item | Cost | Explanation |
| LED modules | $2,400 | Approx. $945/sqm for P1.8 fine pitch modules with gold wire bonding and Nationstar chips. Includes 2% spare modules. |
| Custom curved cabinet + mounting brackets | $700 | CNC machined aluminium frame precisely segmenting the circle into 8 identical arcs. Powder coated in matte black to match store interior. Wall mount brackets designed for concrete anchoring. |
| Video controller & circular mapping | $400 | Novastar MCTRL660 processor pre loaded with a custom EDID file that maps a 1080×1080 feed to the circular canvas. No external scaler was needed because the media player output was already configured to a square format. |
| Air freight (est. 80 kg) | $300 | Express air service with protective wooden crate. Three day transit, including customs clearance documentation support. |
| Total hardware delivered | ~$3,800 | Excludes local installation and on site content commissioning. |
Installation Notes
Because the structure was wall mounted on a prepared concrete surface, the local AV installer completed mounting in under 4 hours.
When This Configuration Makes Sense
Viewing distances under 3 metres
Fixed architectural installation with minimal structural alteration
Buyers who have access to a competent local installation crew.
Case 2: Shopping Mall Central Atrium Suspended Double Sided Ring Display
Project Background
A flagship shopping mall in Southeast Asia required a large, double sided suspended ring LED display. It will hang at the centre of an atrium with a 25 metre ceiling height. The display had to be visible from three floors of balconies. It provides content on both sides.
Technical Configuration
- Outer diameter: 3.5 m
- Inner opening: 2.0 m
- Active area (per side): ≈ 6.48 sqm (π × (1.75² – 1.0²))
- Total display area : ≈ 12.96 sqm
- Pixel pitch: P2.5 indoor, front and rear serviceable
- Brightness: 1,200 nits
- Additional requirement: integrated motorised winch system to lower the ring for maintenance
Cost Breakdown
| Line Item | Cost | Explanation |
| LED display (both sides) | $11,200 | ~$864/sqm for double sided P2.5 modules, gold wire IC drivers, and bespoke curved cabinets that bolt together to form a perfect 3.5 m ring. Cables and receiving cards concealed inside the inner ring cable tray. |
| Steel hanging structure, winch system & safety cables | $2,800 | Grade S355 structural steel ring beam fabricated in 4 segments for on site bolting. Includes a 500 kg capacity motorised winch, four independent secondary safety steel ropes, and a custom ceiling mount bracket plate designed for the mall’s primary truss. |
| Control system | $900 | Novastar VX600 video processor handling a 2 canvas dual output configuration, plus a custom EDID profile for the ring surface. A B redundancy for signal was included because the mall required fail safe operation during peak hours. |
| On site supervision + installation (local crew) | $2,500 | 5 day deployment by a mixed team: one factory engineer (supervision, alignment, colour calibration) plus four local riggers and electricians. Includes lift rental, consumables, and local logistics. |
| Sea freight (1 CBM, DDP terms) | $350 | Full container groupage service with insurance, delivered to site warehouse. Timeline: 23 days port to door. |
| Total project | ~$17,750 | All inclusive turnkey cost, excluding any mall imposed contractor bonds or permit fees. |
Critical Engineering Decisions
Double side vs single side: While doubling the LED surface raises cost, it eliminates the dead back appearance. Moreover, It makes the installation a true 360° branding asset.
Winch integration: The maintenance winch added ~$1,600 to the structural budget but eliminated the need for scaffolding.
When This Configuration Works Best
Multi storey viewing where double sided visibility is mandatory
Installations requiring remote maintenance lowering ,like theatres, atriums, high ceilings
Projects that demand full turnkey delivery
Case 3: Outdoor Trade Show Exhibit Portable Round LED Display
Project Background
An international automotive brand needed a portable circular LED display. The requirements were extreme: IP65 outdoor rating, flight case portability, tool less assembly by booth staff.
Technical Configuration
- Diameter: 1.2 m
- Active area: ≈ 1.13 sqm
- Pixel pitch: P3 outdoor SMD, IP65 front, IP54 rear
- Brightness: 5,500 nits
- Mechanical design: Rear-mounted aluminium protective housing with pop-up trolley mechanism
Cost Breakdown
| Line Item | Cost | Explanation |
| LED module & IP65 protective housing | $1,900 | Fully sealed circular module array housed in a single piece aluminium casing with integrated waterproof cable glands. Includes a UV resistant black silicone edge seal that doubles as shock absorption. At ~$1,680/sqm, the premium over standard indoor modules is explained entirely by the protective engineering and outdoor rated SMD encapsulation. |
| Flight case rack & lifting trolley | $600 | Custom ATA rated flight case with high density foam nesting, integrated wheels, and a built in gas assisted lifting trolley. Booth staff can elevate the display from seated transport height to 1.4 m eye level in under 30 seconds without tools. |
| Novastar processor | $300 | Novastar MCTRL4K processor pre configured with EDID for a 1:1 circular pixel map. The unit is permanently mounted inside the flight case lid, so signal connection is a single HDMI cable from the media server. |
| Total project | ~$2,800 | Delivered as a self contained portable system; no on site engineer required. |
Operational Benefits That Justify the Price
Reusability: The client deploys this unit across 12–15 exhibitions per year. Over one year, the per show hardware cost drops to under $200, making it cheaper than repeatedly building custom set work.
Risk reduction: The IP65 rating and flight case protection nearly eliminate on road damage.
Ideal Use Cases for This Configuration
Frequent use exhibition and event rental fleets
Product launch roadshows across multiple cities or continents
Buyers who need absolute portability and minimal technical crew dependency
Round LED Display vs. Standard Rectangular LED Screen
| Aspect | Round LED Display | Traditional Rectangular LED |
| Customization | High (each project unique) | Low to medium |
| Design Impact | Exceptional, brand signature | Standardized |
| Quoting Process | Needs detailed technical input | Fast, often list priced |
| Lead Time | 25–45 days | 10–25 days |
| Maintenance | May require specialized training | Straightforward |
| ROI | High in premium branding spaces | Good for general messaging |
How to Estimate Your Project’s Total Cost
You can assemble a reliable budget estimation with this formula:
Estimated Cost = (Area × Price per sqm) + Structure cost + Control system cost + Freight + Installation
Where:
- Area = π × (radius)²
- Price per sqm = from market range according to pixel pitch and indoor/outdoor
- Structure cost = 15%–25% of display hardware cost
- Control system = $300–$1,500 depending on complexity
- Freight = air: $3.0–$5.5/kg, sea: $200–$450/CBM
- Installation = quoted locally or by supplier; estimate $600–$2,500/day crew
Final Thoughts
Round LED display price ranges from $1,500 to over $50,000 per unit . While more expensive than standard LED screens, they offer unmatched visual impact and branding potential.If you need this LED display screen, please feel free to contact us.
FAQs:
What is the MOQ for a custom round LED display?
For custom-shaped displays, Our MOQ is usually 1 unit.
How long does it take from order to delivery?
Typical lead time is 25–40 days for design, production, and aging tests. Shipping adds 3–10 days by air or 20–35 days by sea.
Can you provide an exact quote just from diameter and pixel pitch?
Yes, For a firm quote, we need installation method, viewing distance, locatio, and any special structural requirements.
Is installation included in the price?
By default, prices are FOB factory. We offer optional on site installation or provide detailed English installation guides.
What warranty do you offer on round LED displays?
Standard warranty is 2 years, including LED lamp failure and controller malfunction.
How is content mapped to a circular display?
We provide preconfigured Novastar or Colorlight controllers with a custom EDID file. You feed a standard rectangular signal, and the processor remaps pixels to the circular layout.
Can you service and replace modules locally?
Yes, We supply spare LED modules, receiving cards, and power supplies with every order.
Is there a price difference between a circular LED display with a hole (ring shape) and a solid round display?
Yes. A ring shape often requires more structural steel to maintain rigidity, which can increase total cost by 5–15%.
What is the payment structure for custom round LED orders?
Standard terms: 30~50% deposit with order confirmation, 50~70% before shipment.
How do I ensure the round LED display matches our brand color and finish?
We offer custom powder coating for cabinets in any RAL color, custom logo engraving on the frame, and cable management color matching.
